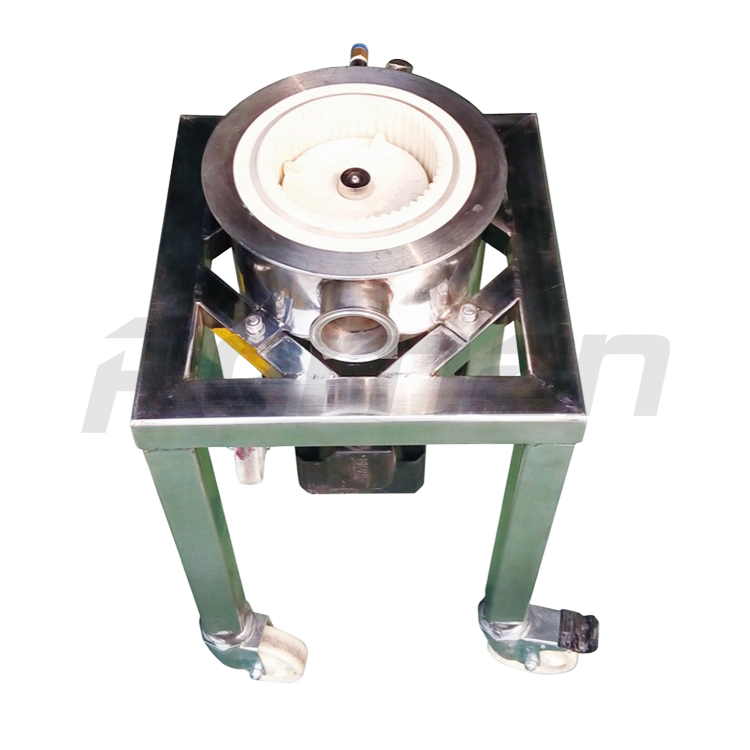

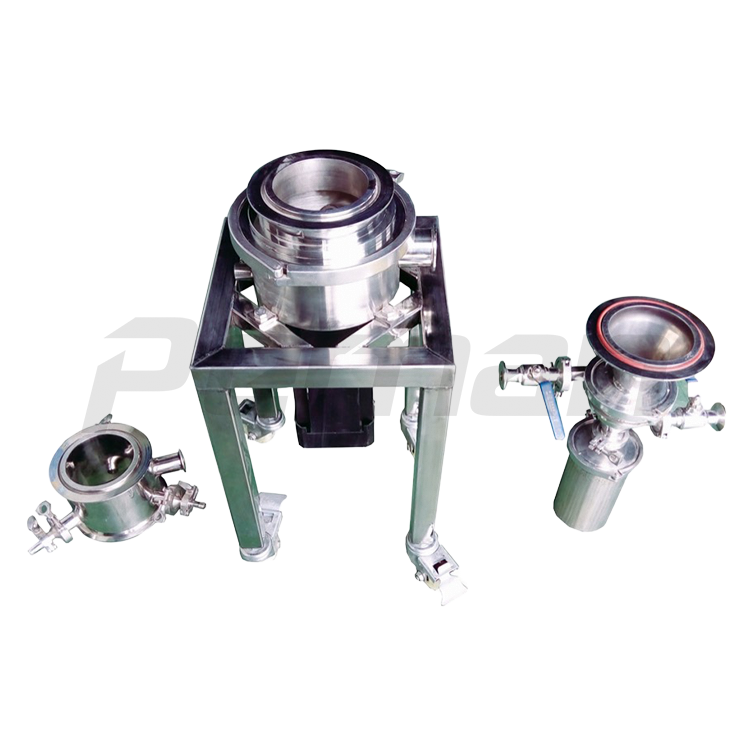

MQW03 air flow grinding classifier is a kind of use of compressed air through the nozzle high-speed jet to make the material in the rotary grinding room collision, friction, shear and crushing, and in the fine classification area will be crushed into different particle size categories, with accurate cutting point, product particle size can be adjusted, the structure is fast open and easy to clean, intelligent control chip, adapt to a variety of materials.
150-9515-2877/400-858-01137*24 hours hotline
Guide installation
Chauffeur pick-up
After-sales service
MQW03 air flow grinding classifier is a kind of use of compressed air through the nozzle high-speed jet to make the material in the rotary grinding room collision, friction, shear and crushing, and in the fine classification area will be crushed into different particle size categories, with accurate cutting point, product particle size can be adjusted, the structure is fast open and easy to clean, intelligent control chip, adapt to a variety of materials.
| Parameters/Specifications | MQW03 | MQW06 | MQW10 | MQW20 |
| Feeding size mm | <3 | <3 | <3 | <3 |
| Product size d97:um | 2-45 | 2-45 | 2-45 | 2-45 |
| Production capacity kg/h | 2-10 | 10-50 | 50-100 | 100-500 |
| Air consumption m3/min | 3 | 6 | 10 | 20 |
| Air pressure Mpa | 0.7-0.85 | 0.7-0.85 | 0.7-0.85 | 0.7-0.85 |
| Installed power kw | 21.8 | 42.5 | 85 | 147 |
